This tutorial version is obsolete - jump to the newest one

RevDeBug Locally

A simple application that will allow you to get ahold of the RevDeBug workflow

Estimated reading time: 3 mins

Last edited: 18 Apr 2019

Open the RevDeBug demo solution

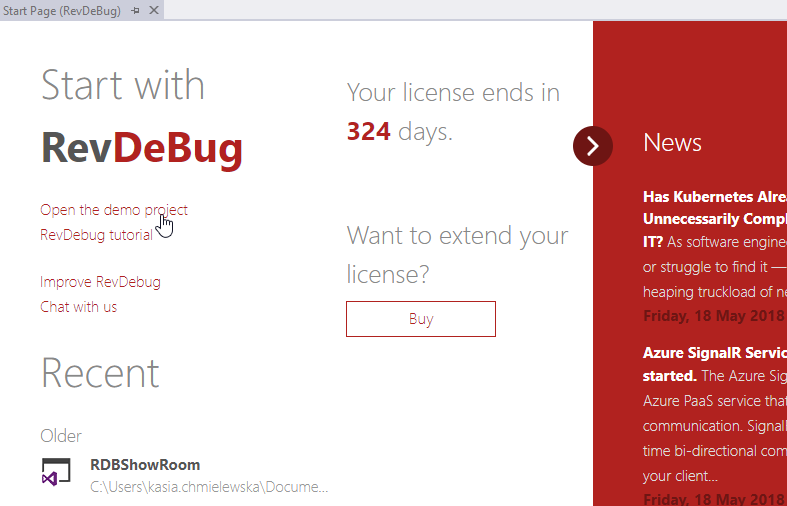

With RevDeBug you can debug your local applications. Just open one of your applications or test it out with our Demo Project. It comes with RevDeBug and you can open it through RevDeBug Start-up page. To do so, click the "Open the demo project" button.

Open demo project

Once the chosen project has been loaded, you can record a bug! On the right-hand side of your Visual Studio IDE you will see a RevDeBug panel which looks like on the image below.

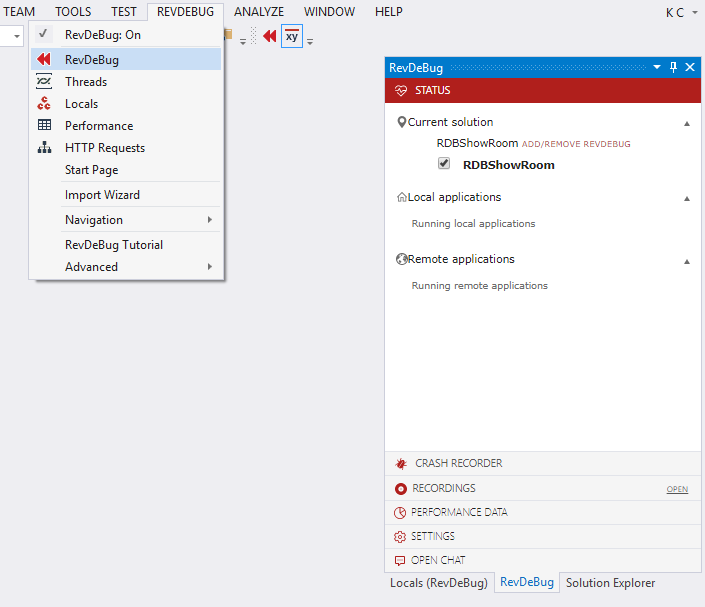

If you can't see this panel, from the VS navigation bar choose REVDEBUG > RevDeBug.

Choose RevDeBug
Choose what to record

You can choose what would you like to record. There are a couple of ways: More of a general way by choosing the project that you would like to record. An advanced way by whitelisting elements.

Start recording

In the Status tab you can see the name of your current solution. Here you can choose, which project of your solution you want to record. Make sure, that the project of your interest is checked, otherwise it won’t be recorded!

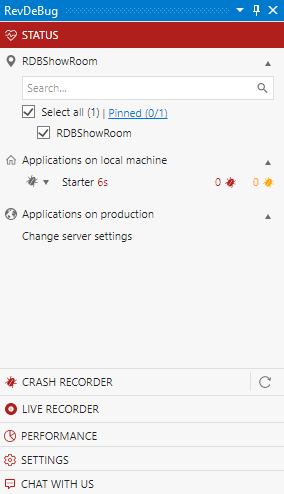

Now, if you start the application, it will show the name of your application under "Local applications". The number next to it indicates how long the application is being recorded for and if any bugs appeared during its execution. Red bug Red Bug stands for an unhandled exception, while the yellow one Yellow Bug stands for a handled exception.

RevDeBug Panel

You will also notice a small floating panel, which is very useful when you want to control the recording of an application without the use of Visual Studio.

Floating Panel

If you end the execution of your application, the recording will be loaded automatically.

Stop recording

You can stop recording by either closing the application or clicking the red square button inside of the Visual Studio RevDeBug panel.

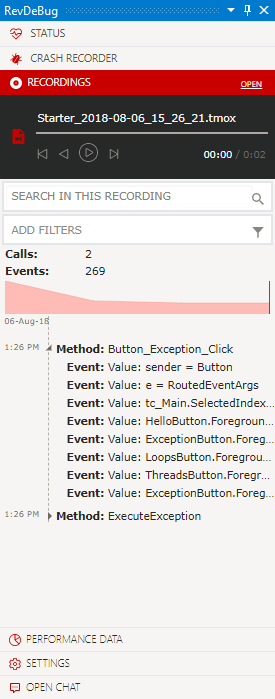

Once the recording has been loaded the Recordings tab will look like the on the below image.

This view can be used as a tool to preview the execution of your application by clicking on the arrows Arrows

RevDeBug Method and Events

You can also jump to specific events, that were executed thanks to the list below.

Filter out exceptions

You can check if there was an exception by filtering it out. If you click on one of the events, you will be moved to the exact place of interest, and the variable values will be overlaid on your code.

Search for a variable value

There is also a search box. You can use it to search for any variable value that has ever occurred either in the currently loaded recording (Advanced Search) or any recording that has ever been made in the past (Global Search)

Search in the recording
Find the previous or historical values of any variable

With RevDeBug you can check, which values were assigned to a chosen variable. Moreover, you can analyze every variable in a chosen method.

Simply click on one of the events of a method of your interest in the RevDeBug panel on right side of the screen. You will be moved to the right place in code.

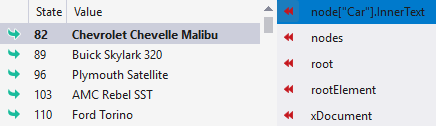

Then, if you choose from menu: RevDeBug > Locals, a window with variables will pop-out. If you click on a red arrow Red Arrow Nodes next to one of variables, its historical values will appear.

Historical Values Read more about Historical Values
